Hans Christian 33T

Hans Christianbåtarna tillhör de verkligen supertunga klassiska långfärdsbåtarna. Inget kan stoppa dem. Om man dessutom gillar klassiska linjer så kan en Hans Christian vara rätt val.

Jag har i många år fascinerats av Hans Christian serien som finns från 33 upp till 52 fot.

Hans Christianbåtarna ger ett mycket gediget intryck och med en torrvikt på 8.5 ton så är det en verklig tungdeplacements båt. Inredningen är massiv ädelträ, bänkskivor i pentry och på toaletten är i grön marmor! Alla ventiler är av polerad mässing och runda, precis som på båtar hundra år äldre.

Från Broschyren:

Construction

The hull and deck are hand laid up in accordance with approved laminates and procedures. The standard hull and deck colour is off white (ref. LR #8981). In the hull a combination of woven roving and chopped strand mat are used with thickness increasing towards the keel. There is a reinforcing balsa core in the topsides which stops at six inches above the waterline. Vinylester resin is used for the initial layers below the waterline. The ballast keel is encapsulated entirely within the hull moulding. The deck moulding has a PVC foam and/or balsa core which is replaced with plywood in high stress areas where fittings are attached. A two part epoxy barrier coat paint is applied below the boot-top for extra anti-osmosis protection.

Rudder

The rudder is moulded GRP with a stainless steel stock, the base of which locates onto the bottom of the keel fairing. The heel sitting is a cast bronze item. The rudder post is machined to accept cable steering fittings as standard (hydraulic steering available as an option) and a custom emergency tiller is provided.

Cockpit

The cockpit is integral with the deck moulding. There is a cockpit locker to port which gains access to the aft peak, and a locker under helmsmans seat. The gas locker is to starboard and accessed from the cockpit. The cockpit has vertical teak staving to the seat backs, with teak inlay to the seats as standard. The cockpit sole is also teak inlay. Two large cockpit drains are fitted.

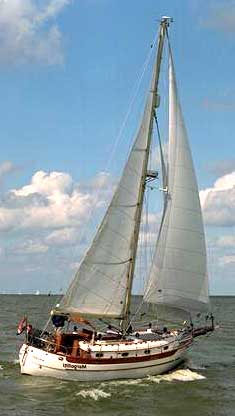

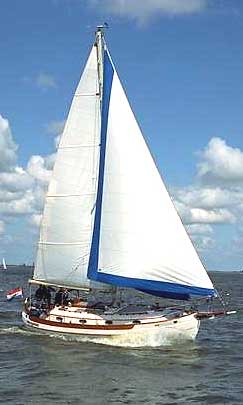

Rig

The standard rig for the vessel is a cutter rig with a club footed staysail. A single spreader aluminium mast with external halyards for Mainsail, Headsail and Staysail. Three winches and cleats are mast mounted for halyards. One masthead light, one steamig light and one pair of spreader lights are installed. The aluminium boom is fitted with an internal outhaul system and a winch and cleats for outhaul and reefing. The mast and boom are painted white.

Standing rigging is of 1 x 19 stainless steel wire with swage on upper end fittings and swage on turnbuckles at lower fittings. Running rigging is of low stretch double braid polyester with stainless steel shackles.

Deck

The side decks, coach roof and cockpit are all teak covered, 9/16" thick, laid down on two part flexible sealant, and screwed and plugged. Ventilation is provided by one opening custom teak framed deck hatch, 8 bronze opening elliptical portholes, 2 bronze opening round portholes, one opening custom skylight, and four stainless steel dorade ventilators. Teak grab rails are fitted on the coach roof.

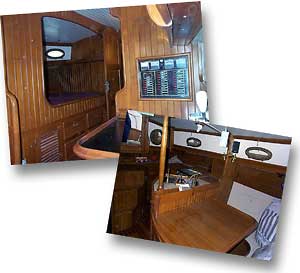

Interior and joiner work

The interior of the vessel will be with solid teak staving and selected teak veneers. The cabin sole is teak and holly striped, and the overheads are finished in custom white FRP panels with solid teak trims. There is an optional layer of insulation above the overheads offered. Counter tops and the chart table are finished with black Formica, the galley work surface as well as the bathroom counters are finished in white Formica as standard, options include marble, granite, or 'corian style' surfaces from our selected samples. All doors are of solid teak with ventilation louvers to the lower panel as standard. All door frames, locker doors and frames are of solid teak construction. All door furniture is brass (stainless fittings are available as an option). Teak gratings over the FRP shower pans are standard.

Chain locker

Painted white, and drains directly overboard port and starboard, via holes, and GRP clam shell covers to the boot top. Aft plywood bulkhead is painted white, and is sealed all around, but not termed as a water tight bulkhead. An access hole is cut into the bulkhead to access the chain locker from the forward head.

Forward head

White Formica counter surfaces, stainless steel washbasin, bronze mixer faucet to basin, A manual marine head installed in the correct manner with vented loops on both salt water inlet and discharge. Y-Valve fitted into discharge line allowing waste to be discharged directly overboard, or to integral holding tank. General finish of the head to be teak staved or white FRP mouldings, and panels with teak trims. Teak louvered door to locker under the washbasin, teak framed mirrored sliding doors to lockers over the washbasin. Finish to the inside of the lockers is in white Formica with teak trims. A teak toilet tissue holder is fitted to the inside of the locker door under the washbasin. A bronze opening port to starboard, fitted with a brass portlight chain to hold the port in an open position, and dorade vent provides ventilation to the compartment. The dorade vent is fitted with a bug screen, and the port is also supplied with a bug screen.

A separate shower stall is located to port, with moulded shower pan, and fibreglassed lined bulkheads. The shower pan is fitted with a teak grating and a teak slatted seat is fitted outboard, a teak towel rail is mounted to the aft bulkhead, and a teak rail over the entrance secures the shower curtain. A bronze shower mixer with hot and cold water is fitted.A dorade vent provides ventilation to the compartment. The dorade vent is fitted with a bug screen. Standard door furniture to lockers consist of teak finger holes and brass elbow catches with barrel bolts on double doors.The washbasin drains into a the shower drain system. Shower sump drains into the shower drain system, mounted under the forward berth, and discharging overboard through a seacock located in the hanging locker. The shower sump operates automatically and has a separate circuit breaker at the DC panel. Y-Valve and vented loops are located in the locker outboard of the head. Salt water inlet seacock for the marine head is located under the removable sole panel of the head. The compartment is fitted with one overhead dome light, with white and red 'night vision' lamps switched independently on the light fitting, and one twin directional spotlight fitting over the washbasin. One double outlet for AC power is fitted to locker font above the washbasin. An overhead dome light, with white and red 'night vision' lamps switched independently on the light fitting, is also fitted in the separate shower stall. A solid teak door with a louvered lower panel, fitted with brass hinges and mortise lock, a brass robe hook, and teak towel rail, leads aft to the forward cabin. A gooseneck hook holds the door in an open position.

Forward cabin

Teak staved throughout. 6 (six) drawers are fitted under the berth, and louvered doors to lockers fwd and aft, of the drawers.The compartment is fitted with two overhead dome lights, with white and red 'night vision' lamps switched independently on the light fitting, one twin directional spotlight fitting over the berth to port, and one brass reading lamp to the aft bulkhead over the berth. One double outlet for AC power is fitted outboard of the berth over the bookshelf.

The hanging locker to port, is split to form stowage shelves to the forward end, with hanging space to the aft end. Locker is lined with teak veneers and white Formica with teak trims to the shelves, and an automatic locker light is fitted.

Two bronze opening ports to starboard, and one bronze opening port to port are each fitted with a brass portlight chain to hold the port in an open position, A dorade vent provides ventilation to the compartment. The dorade vent is fitted with a bug screen, and the port is also supplied with a bug screen.The ports are each supplied with a bug screen. Standard door furniture to lockers consist of teak finger holes and brass elbow catches with barrel bolts on double doors.

Saloon

Teak Staved throughout. An 'L'-shaped dinette is to port, and a settee to starboard. Stowage is provide under the settees. A large black Formica covered dining table, with solid teak removable fiddles is the focal point of the saloon.

The area is fitted with two overhead dome lights, with white and red 'night vision' lamps switched independently on the light fitting, twin directional spotlights are fitted over the settees to port and starboard, Two double outlets for AC power are fitted to the area

Two bronze opening ports one starboard, and one to port are each fitted with a brass portlight chain to hold the port in an open position. A large opening skylight overhead provides ventilation to the compartment. The ports and skylight are each supplied with a screen to prevent insects entering the compartment. Standard door furniture to lockers consist of teak finger holes and brass elbow catches with barrel bolts on double doors.

Nav . station

The Navigation station is located to starboard, at the forward end of the saloon. Teak staved throughout, the Navigation station faces forward, and utilises the forward end of the settee for seating The chart table is finished in black Formica with solid teak trims. The chart table top lifts to provide chart stowage under, and a and a locker provides stowage under the table. The main electrical panel , the bilge pump control panel and the tank monitoring system are mounted at the chart table

The area is fitted with one overhead dome light, with white and red 'night vision' lamps switched independently on the light fitting, one twin directional spotlight fitting over the Nav station. One double outlet for AC power is fitted.

A bronze opening port above the nav. station, is fitted with a brass portlight chain to hold the port in an open position, the port is supplied with a bug screen. Standard door furniture to lockers consist of teak finger holes and brass elbow catches with barrel bolts on double doors.

Galley

Teak staved throughout, the galley is located to port and is fitted with a deep stainless double sink facing forward. A bronze mixer faucet provides hot and cold water from the pressurised main. In addition two bronze handpumps are fitted, one providing salt water, the other one fresh water from the vessels tanks. Teak cutting boards are supplied for the sink. White Formica counter surfaces. Stowage is provided by way of drawers and lockers. TheFRP icebox is insulated with 4" of polyurethane foam and are accessed via lift tops and an openingside door. The gimballed stove is a Force 10 two burner with broiler, and is fitted into a stainless steel lined opening.

The galley sink drains directly overboard, and a seacock is accessed under a removable sole panel. The area is fitted with one overhead dome light, with white and red 'night vision' lamps switched independently on the light fitting, twin directional spotlights are fitted to the work spaces. One double outlet for AC power is fitted to the work space.

Two bronze opening port are fitted, one 12" diameter round port opening into the cockpit, and an elliptical port in the cabin trunk. Both ports are fitted with a brass portlight chain to hold the port in an open position, A dorade vent provides ventilation to the area The dorade vent is fitted with a bug screen, and the port is supplied with a bug screent. Standard door furniture to lockers consist of teak finger holes and brass elbow catches with barrel bolts on double doors.

Aft cabin

Teak staved throughout. A good-size berth is fitted. A hanging locker outboard, and is lined with teak veneers and white Formica with teak trims to the shelves, and an automatic locker light is fitted. The compartment is fitted with one overhead dome light, with white and red 'night vision' lamps switched independently on the light fitting, one twin directional spotlight fittinmounted over the berth, and one brass reading lamp to the forward bulkhead over the berth. One double outlet for AC power is fitted at hanging locker. An 8 gallon water heater is installed under the berth. The water heater is of the calorifier type, whereby engine coolant is circulated through a coil within the cylinder, thus heating the water when the engine is running. The unit also has an electric heating element installed which enables hot water to be produced when the vessel has ac power.Two bronze opening port are fitted, one 12" diameter round port opening into the cockpit, and an elliptical port in the cabin trunk. Both ports are fitted with a brass portlight chain to hold the port in an open position, One dorade vent provides ventilation to the compartment. The dorade vent is fitted with a bug screen, and the ports are also supplied with a bug screens Standard door furniture to lockers consist of teak finger holes and brass elbow catches with barrel bolts on double doors.

Plumbing

The vessel has installed integral water tanks with an approximate capacity of 90 gallons (340 litres), two integral fuel tanks, coated with approved epoxy tank coating with a total capacity of approximately 80 gallons (295 litres), and an integral holding tank with a capacity of approximately 15 gallons (56 litres).

The pressurised hot and cold water system consists of one 12V DC water pressure pump with strainer and an accumulator to provide an even flow and to eliminate water hammer, and one 8 gallon calorifier, with a fitted element for hot water from AC power. All pipework is uses WHALE fittings throughout for hot and cold water. Bronze Through Hull fittings with Bronze Seacocks on all Standard hull penetrations

Electrical

The vessel is wired for a 12 volt DC electrical system as standard. An AC power system (110V or 220V) is wired to run from a shore power connection point, and there is one AC outlet in each area ; Aft cabin, galley, Saloon, Forward Cabin. Standard lighting fixtures are Brass 5 inch dome lights with twin switches for white and red 'night vision' lighting, twin spotlight lights in alcoves and under shelving, Brass reading lights are fitted above the berths, and red cabin sole courtesy lights throughout. A copper strip running the entire length of the vessel for the Bonding system. Zinc Anodes Connected to the Bonding System.

Machinery

The Standard scope of supply for the machinery items are as follows :-

• Fully Bonded FRP Seats for engine installation
• Yanmar 3JH3-E, 40 hp c/w KM3P Gearbox
• 11/4" Diameter Stainless Steel Propeller Shaft
• 1 Bronze 3 Bladed Propeller
• Insulated Engine Compartment
• 1 Racor Fuel Filter before Fuel Manifold
• 1 Engine cooling water seacock with strainer
• 1 12V DC Engine Room Blower
• 2 FRP Exhaust Mufflers - 1 water lock, and 1 muffler.
